Twin Turbo, 32V Lightning Build Delivers 800+ Horsepower

One Lightning owner wanted monster power, so he swapped out the stock heads & supercharger for a set of 4Vs & huge turbos.

The Ford F-150 SVT Lightning is one of the greatest on-road performance trucks of all time. The supercharged V8 delivered enough power to make it one of the quickest and fastest stock trucks ever and owners found that small modifications could lead to big power gains.

However, picking up a few extra ponies from a set of headers, pulleys and a tune wasn’t enough for one of the Lightning owners on the forum. He wanted monster power and to achieve that, he swapped out the stock heads and the supercharger for a set of 4V heads and a pair of huge turbochargers.

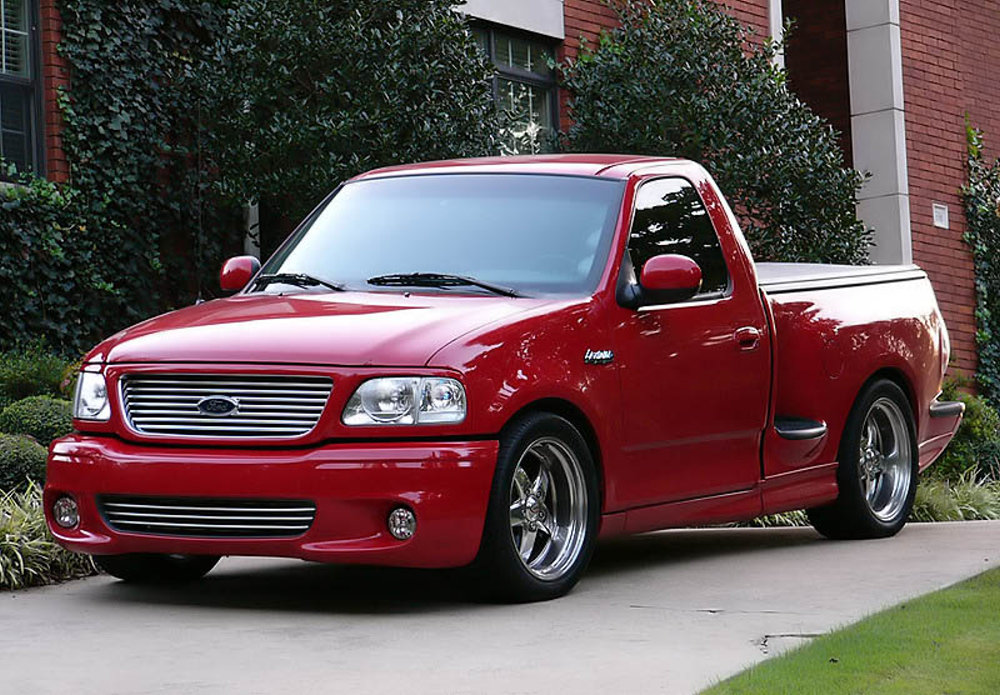

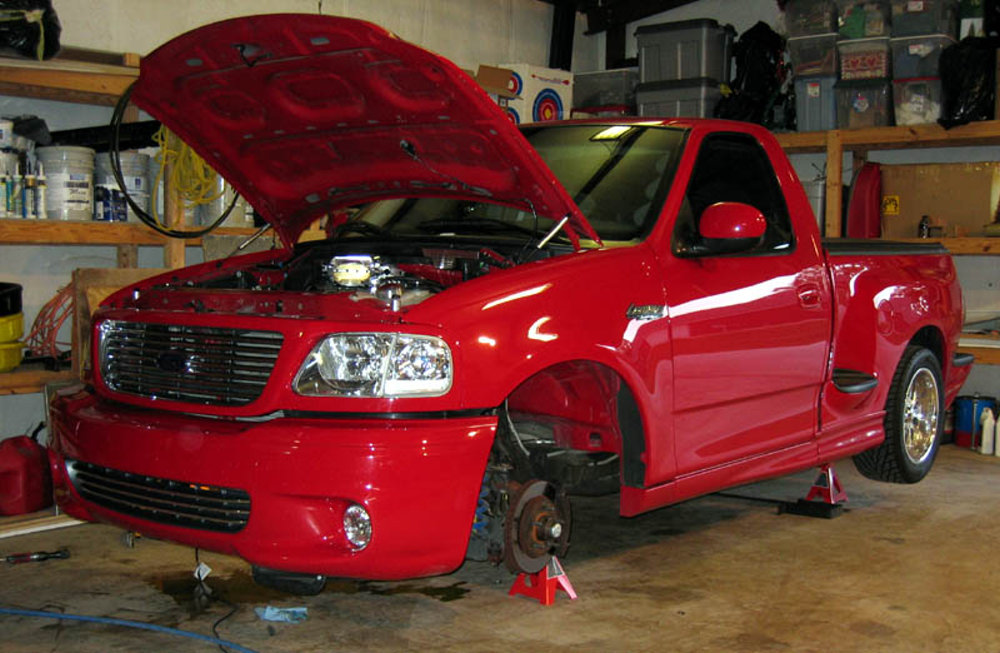

The result is one of the coolest SVT Lightnings we’ve seen, looking like a relatively stock truck with aftermarket wheels while packing more than 685 rear-wheel horsepower.

ShockTherapy’s TT 32V Lightning Project

When F150Online member ShockTherapy introduced us to his F-150 Lightning project years ago, it quickly became a long thread package full of in-depth build details and pictures of the project at each step of the path. Since this was “only” an engine build, there was less to talk about in terms of progress, but the OP provided information on every little step of his build.

That level of detail made this twin turbo, 32V head swap into an incredibly long thread, with 26 pages of discussion and pictures before the dyno numbers were announced. Because of the length, detail and unique nature of the build thread, we won’t walk you through the project as we normally do when we feature a build.

Instead, we will give you a quick preview of the project and invite you to grab a drink before reading through the 32-page build.

The Plan

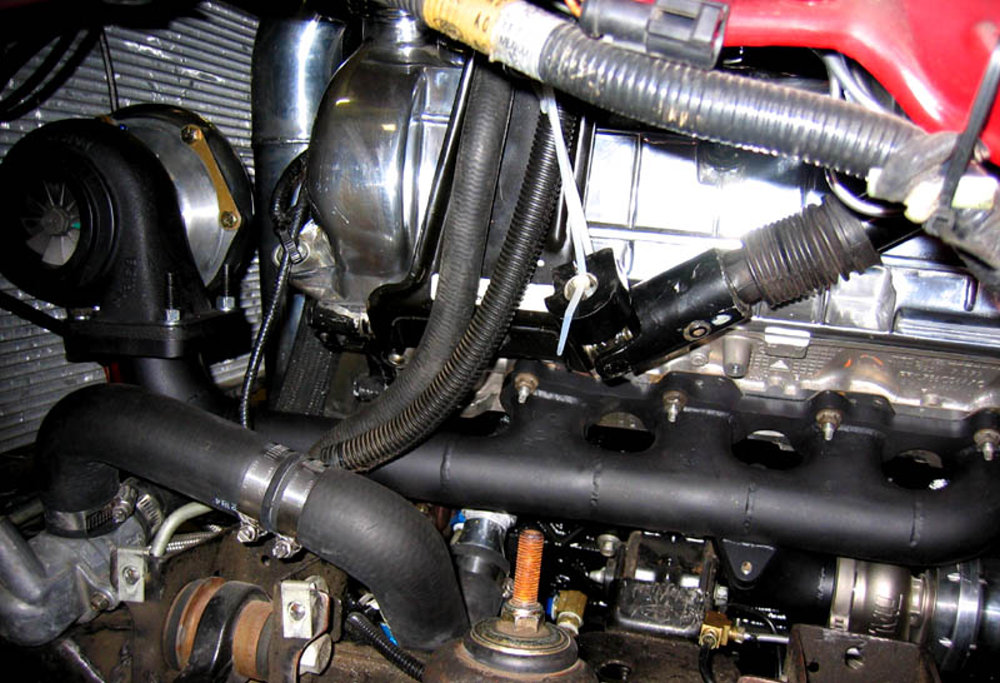

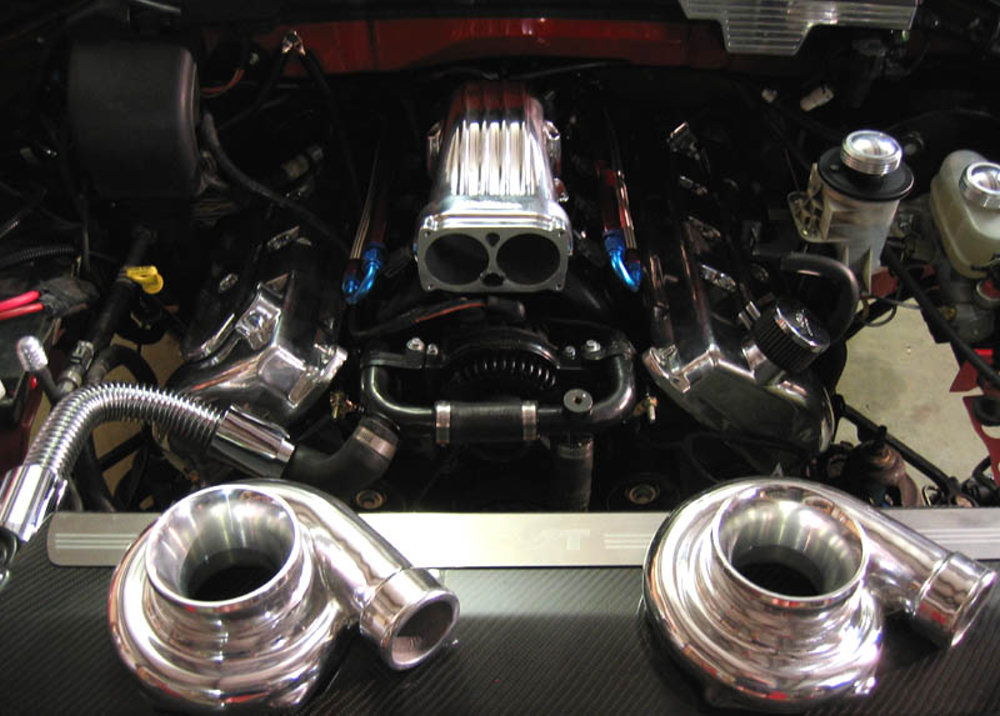

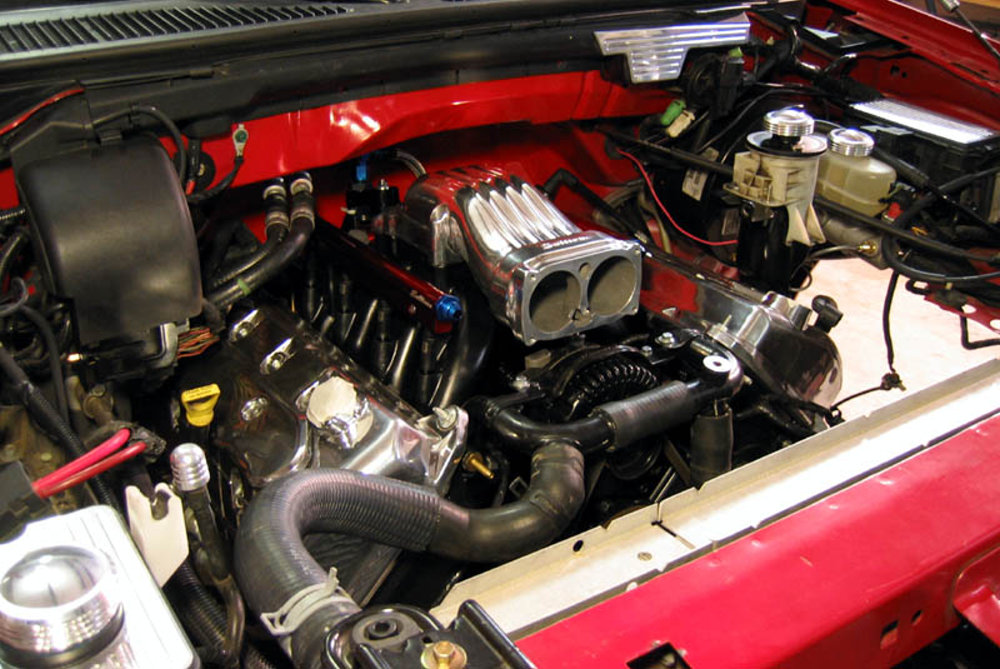

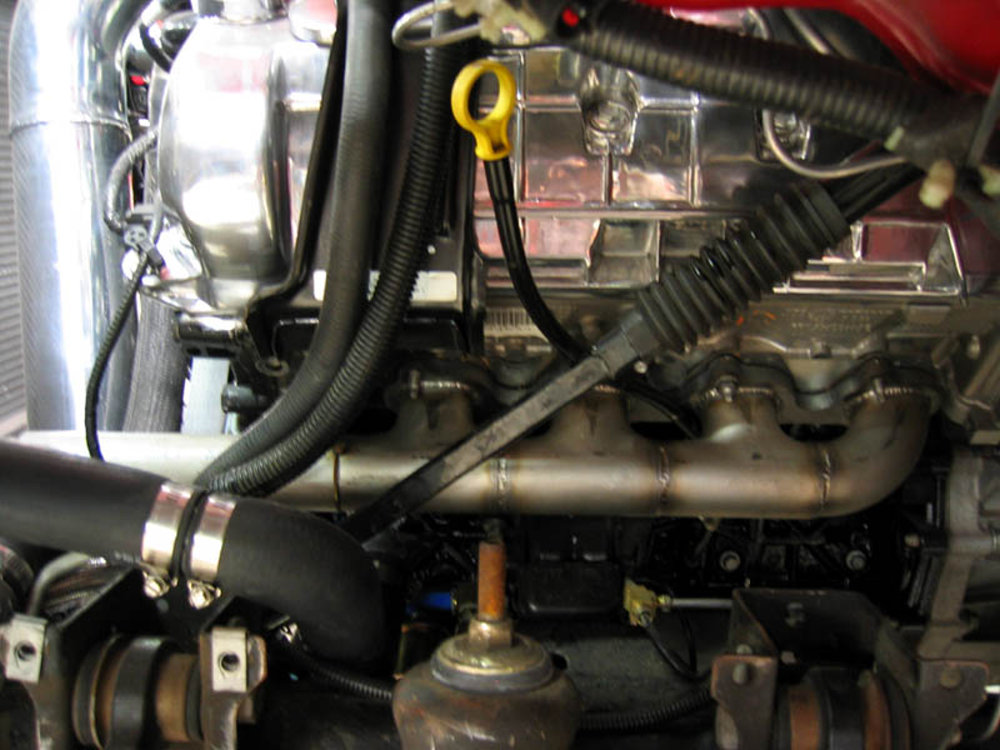

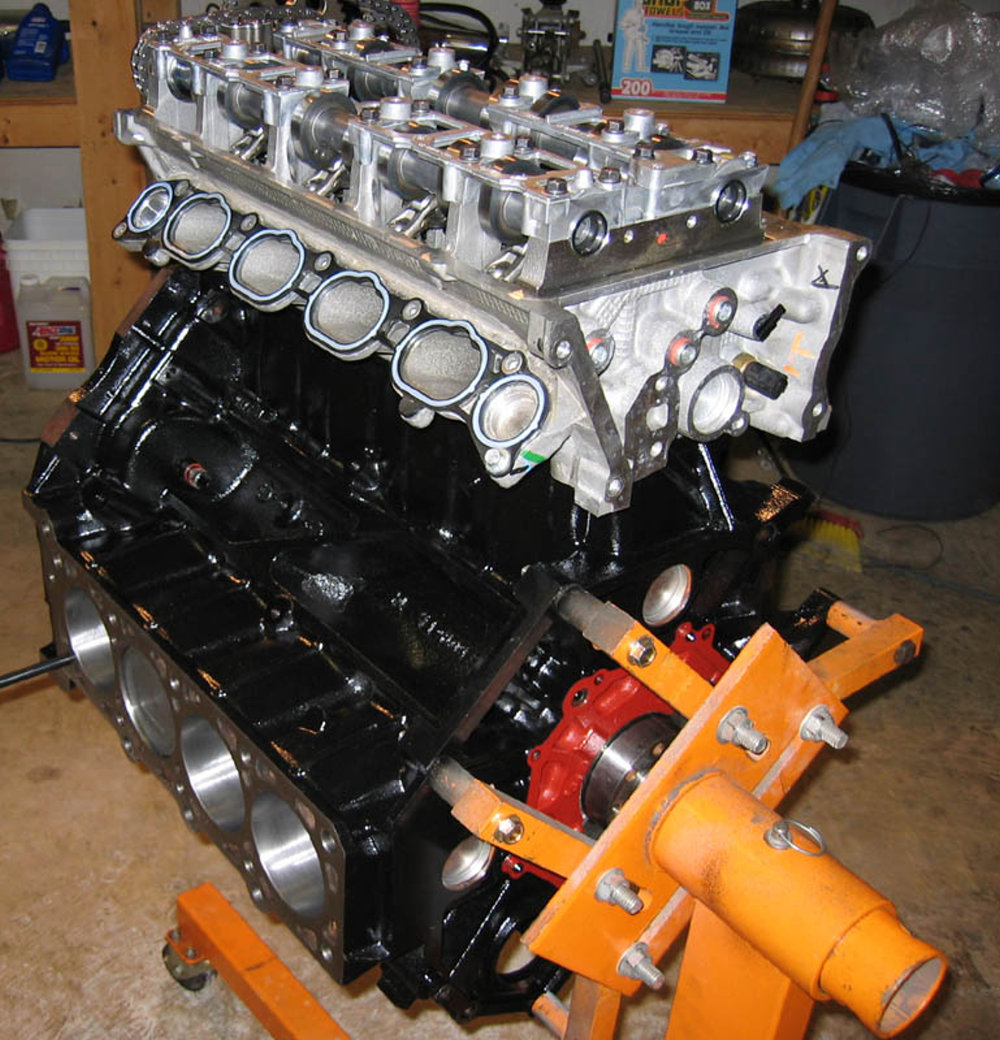

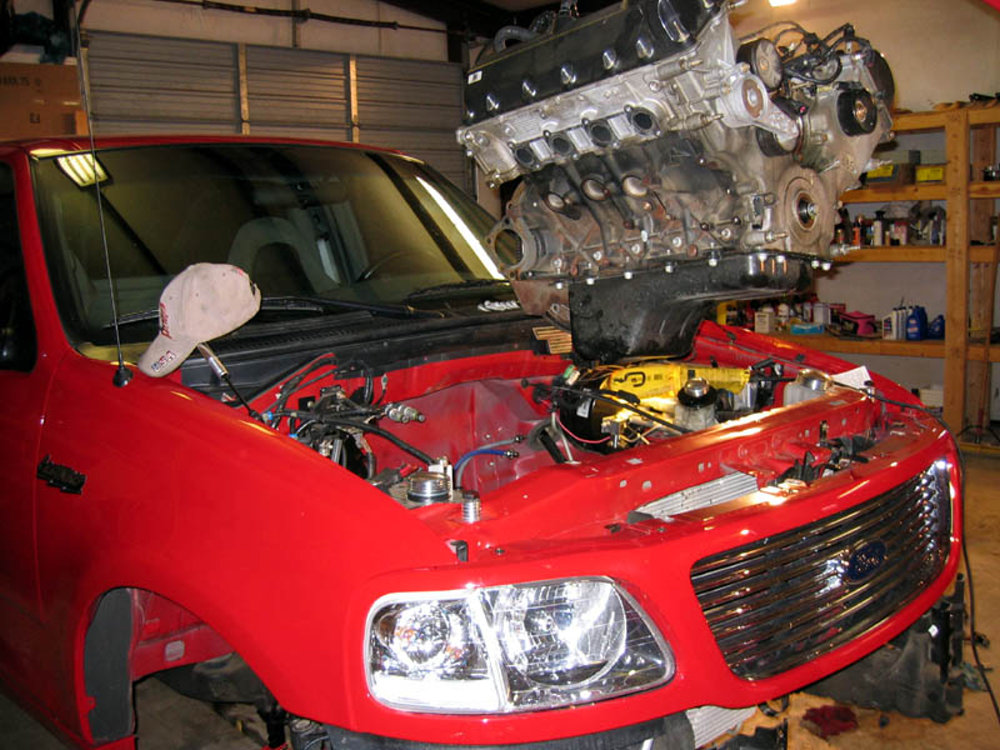

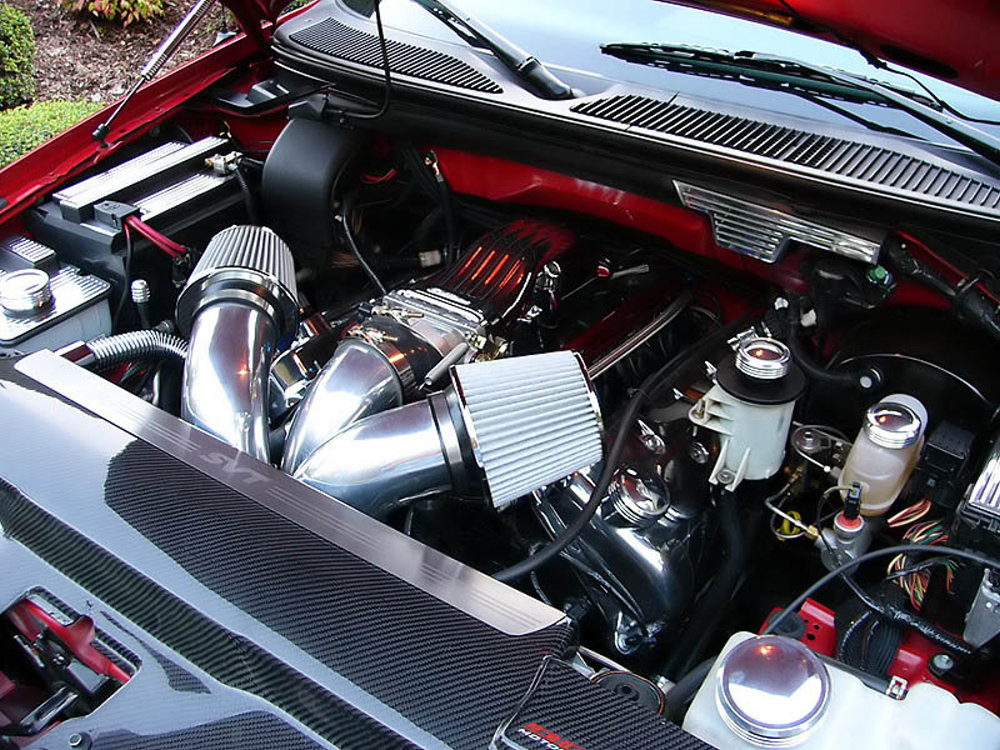

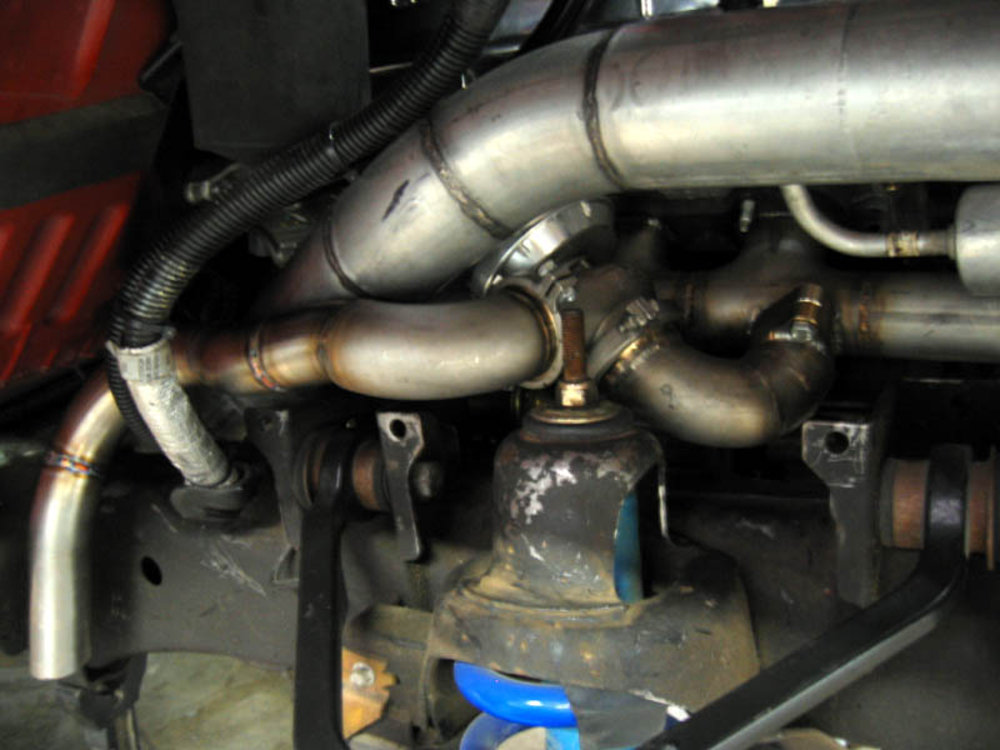

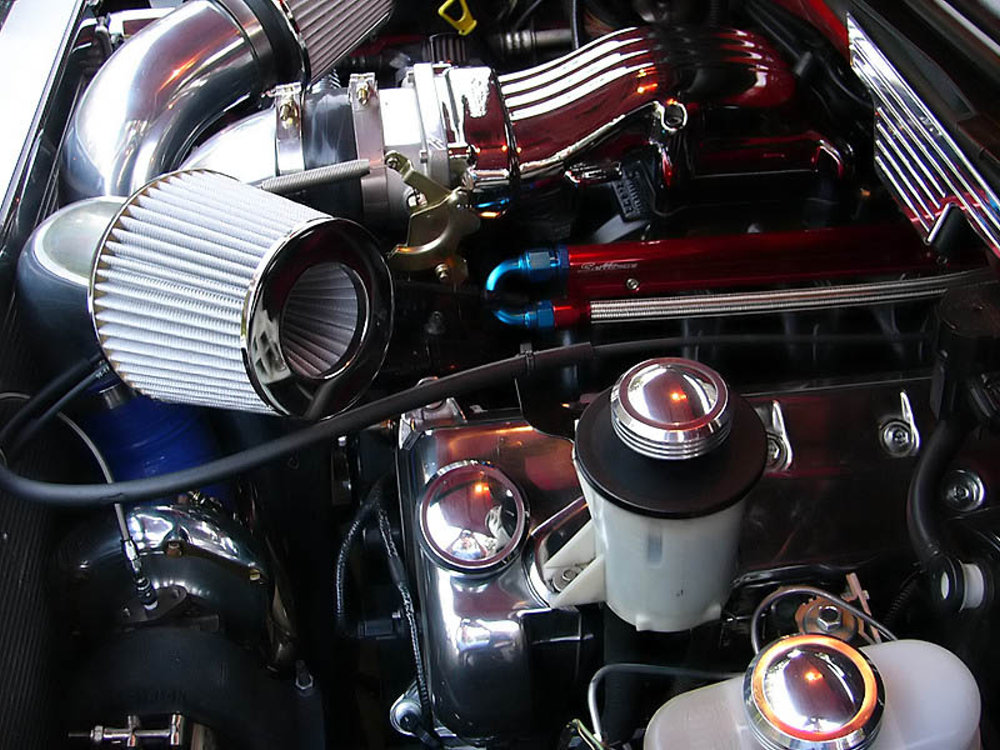

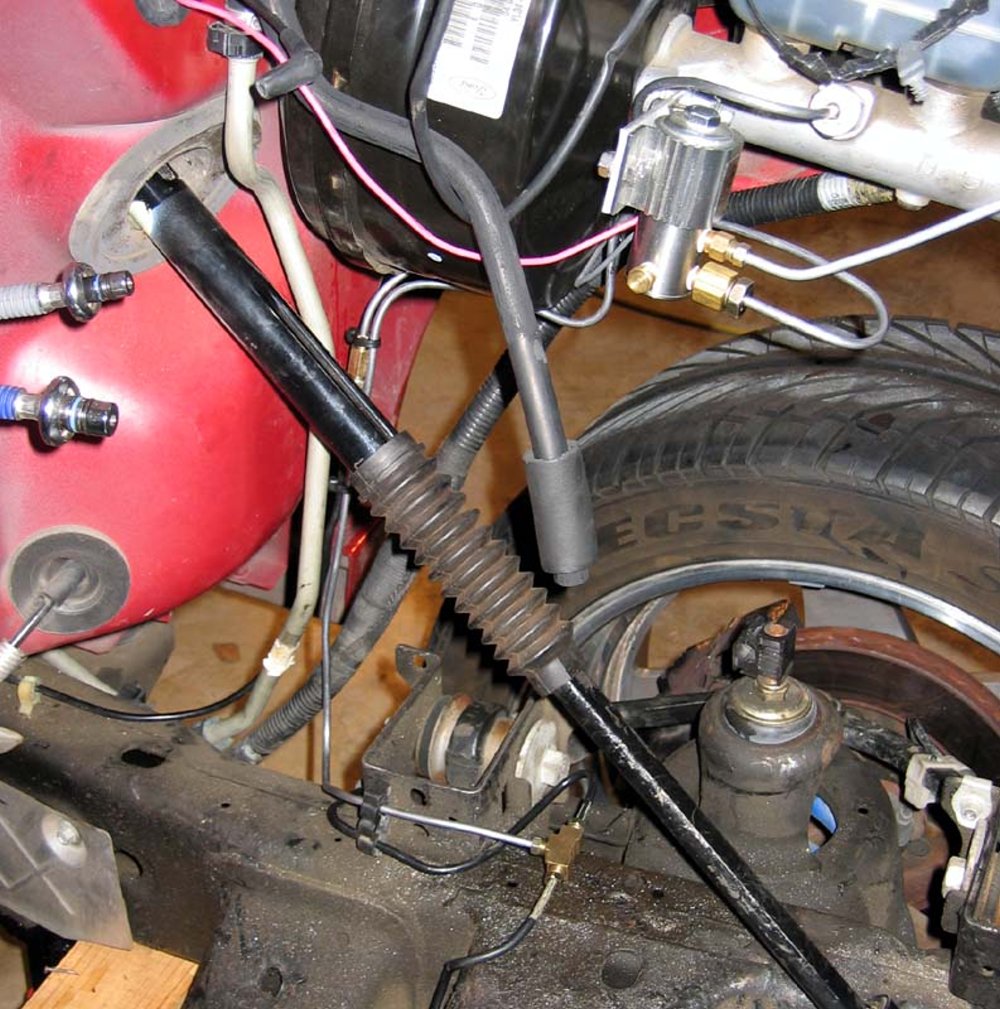

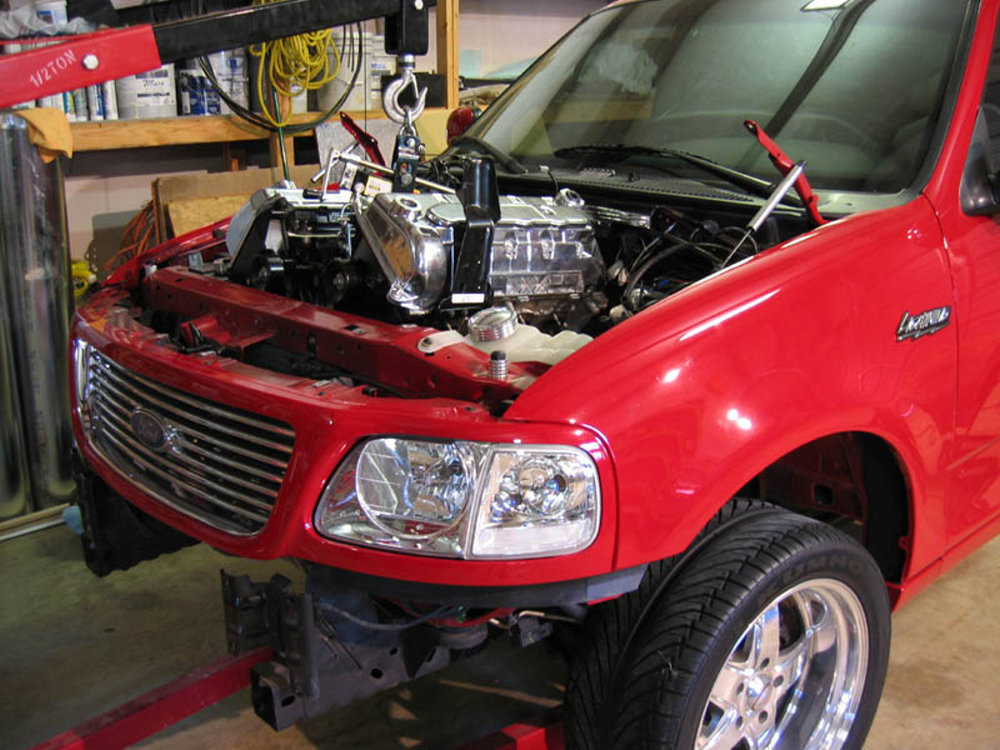

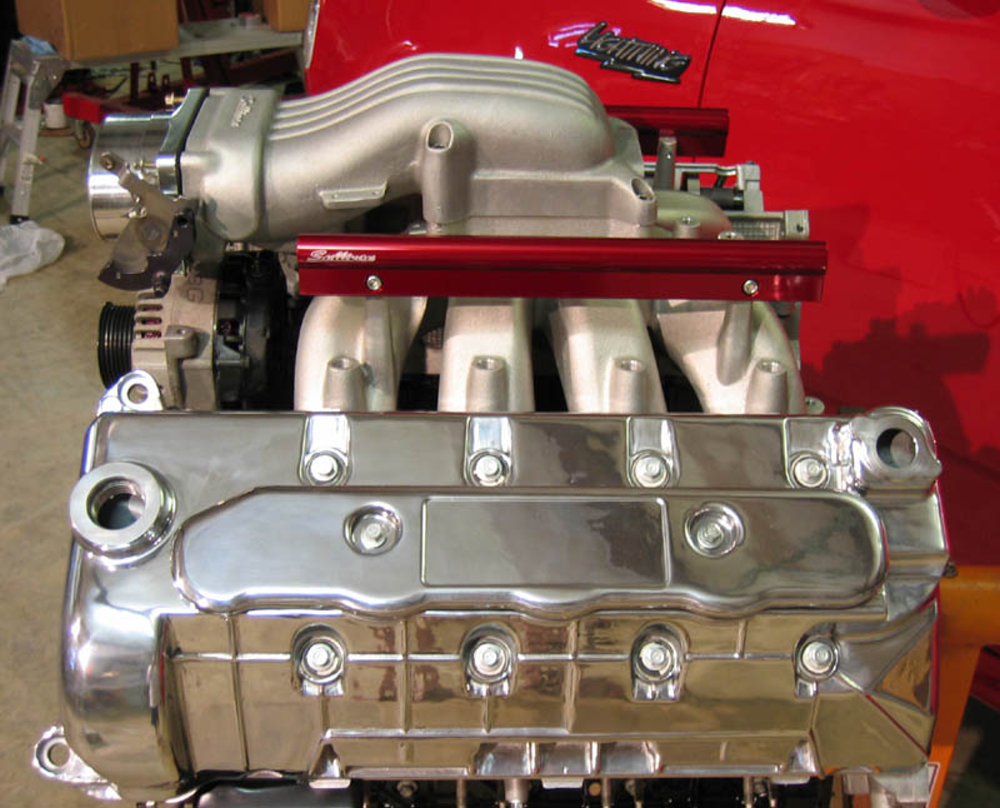

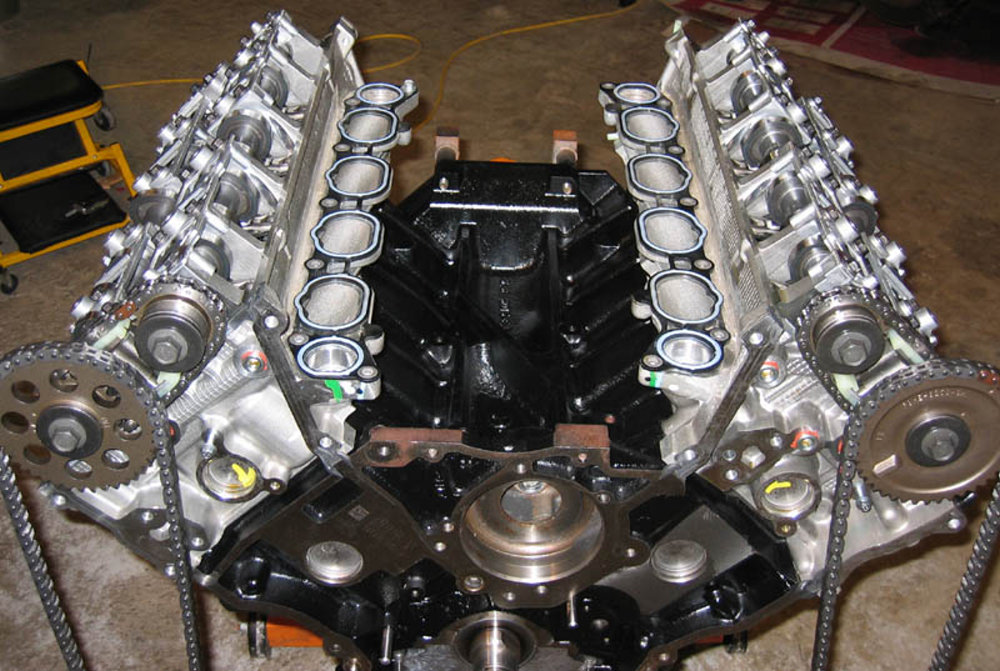

When ShockTherapy began his Ford F-150 SVT Lightning build, his plan was to remove the stock engine from the engine bay, remove the stock cylinder heads with two valves per cylinder and remove the factory supercharger setup. He planned to replace the stock heads with a set of four valve-per-cylinder heads (hence 32V) from a Lincoln Navigator and in place of the supercharger, he would install an intake manifold that would be force-fed by a pair of huge turbochargers. Of course, he also installed the camshaft from the Navigator, along with making some required changes such as relocating brake lines in the engine bay.

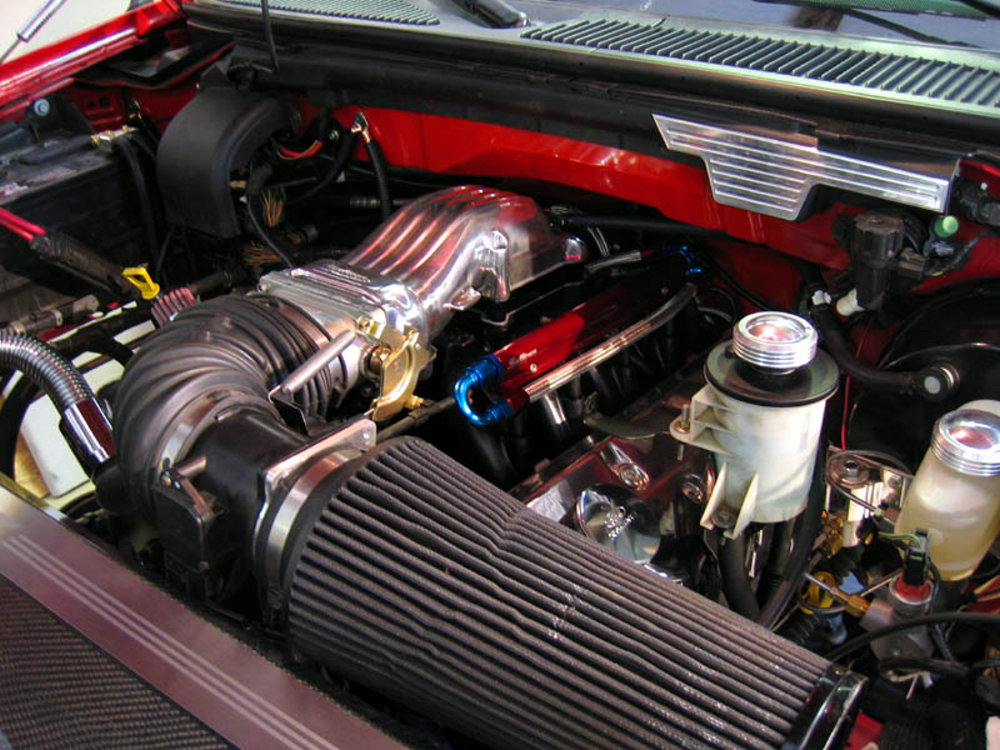

Over the course of a few months, the OP kept the forum updated on the progress of the build, resulting in one wicked SVT Lightning. On the 27^th page of the thread, he reveals that the completed project laid down a whopping 685.3 horsepower and 673.3 lb-ft of torque at the rear wheels. Using a conservative drivetrain loss ratio of just 15 percent, this twin turbo 32V V8 is making somewhere in the area of 800 horsepower at the crankshaft.

So, if you have some time to kill and you want to read every step of the process in switching an SVT Lightning F150 from a supercharged 16V engine to a twin turbo 32V engine, this thread is a gold mine of information.
